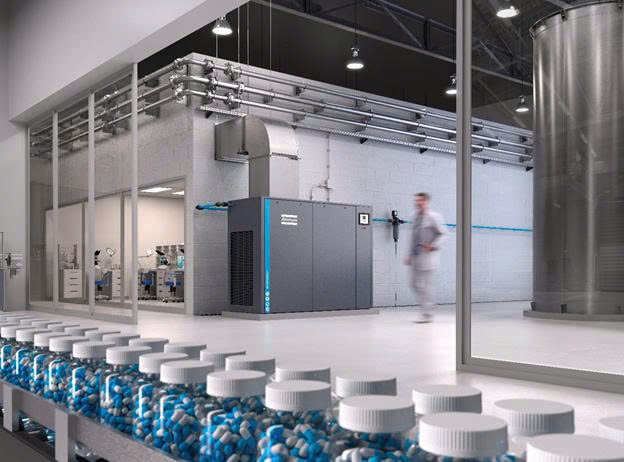

AQ 15-55 VSD: OIL-FREE WATER-INJECTED SCREW COMPRESSORS
Model: AQ 15 VSD, AQ 18 VSD, AQ 22 VSD, AQ 30 VSD, AQ 37 VSD, AQ 45 VSD, AQ 55 VSD
Features of AQ 15-55 VSD:
- The AQ VSD fits easily on your factory floor with a compact footprint. Integrated air treatment ensures efficiency and reliability for years.
- The AQ VSD’s unique water-injected screw element ensures a highly efficient compression process.
- Energy savings with VSD:
- Atlas Copco’s AQ VSD technology closely follows the air demand by automatically adjusting the motor speed.
- This results in up to 35% energy savings.
- The lifecycle cost of a compressor can be cut by an average of 22%.
- Lowered system pressure with AQ VSD dramatically minimizes energy use across your production.
- Certified CLASS 0 – no aerosol, vapor, or liquid oil in output air.
- Neos inverter: Designed in-house, robust, and user-friendly. Delivers up to 35% energy savings by adjusting motor speed based on demand.
- Integrated dryer: A fully integrated dryer ensures excellent air quality with up to 50% lower energy use than traditional dryers.
- Elektronikon® Graphic: High-resolution color display with advanced control features, remote monitoring (SMARTLINK), and multiple compressor management capabilities.
- Induction motor
- IP55 induction motor, flange-mounted for perfect alignment.
- Combined with direct driven arrangement for superior energy efficiency.
- Air-cooled fan and water-cooler
- Air and water-cooled variants are available throughout the range.
- Small footprint and installation thanks to built-in heat exchangers.
- Water-cooled units provide a continuous air temperature at the dryer inlet of less than 55°C (131°F).

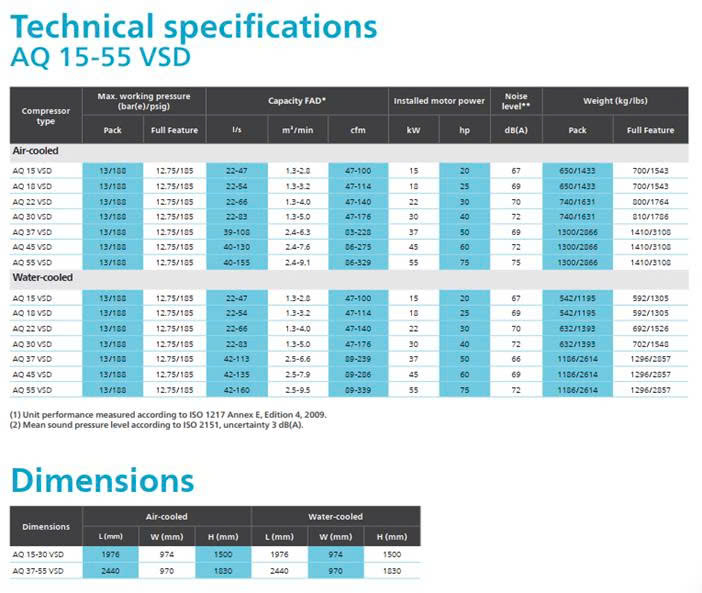

CATALOGUE – DATA SHEET
SF 1-22: OIL-FREE SCROLL COMPRESSORS
- Model: SF 1, SF 2, SF 4, SF 6, SF 8+, SF 11+, SF 15+, SF 17+, SF 22+
Features of SF 1-6: Efficient, silent & compact
- The SF 1–6 is a complete package that includes an element, drive motor, aftercooler and starter in a super-silent acoustic enclosure that can be installed directly onto your work floor.
- It is also available as a Full Feature unit with integrated refrigerant air dryer.

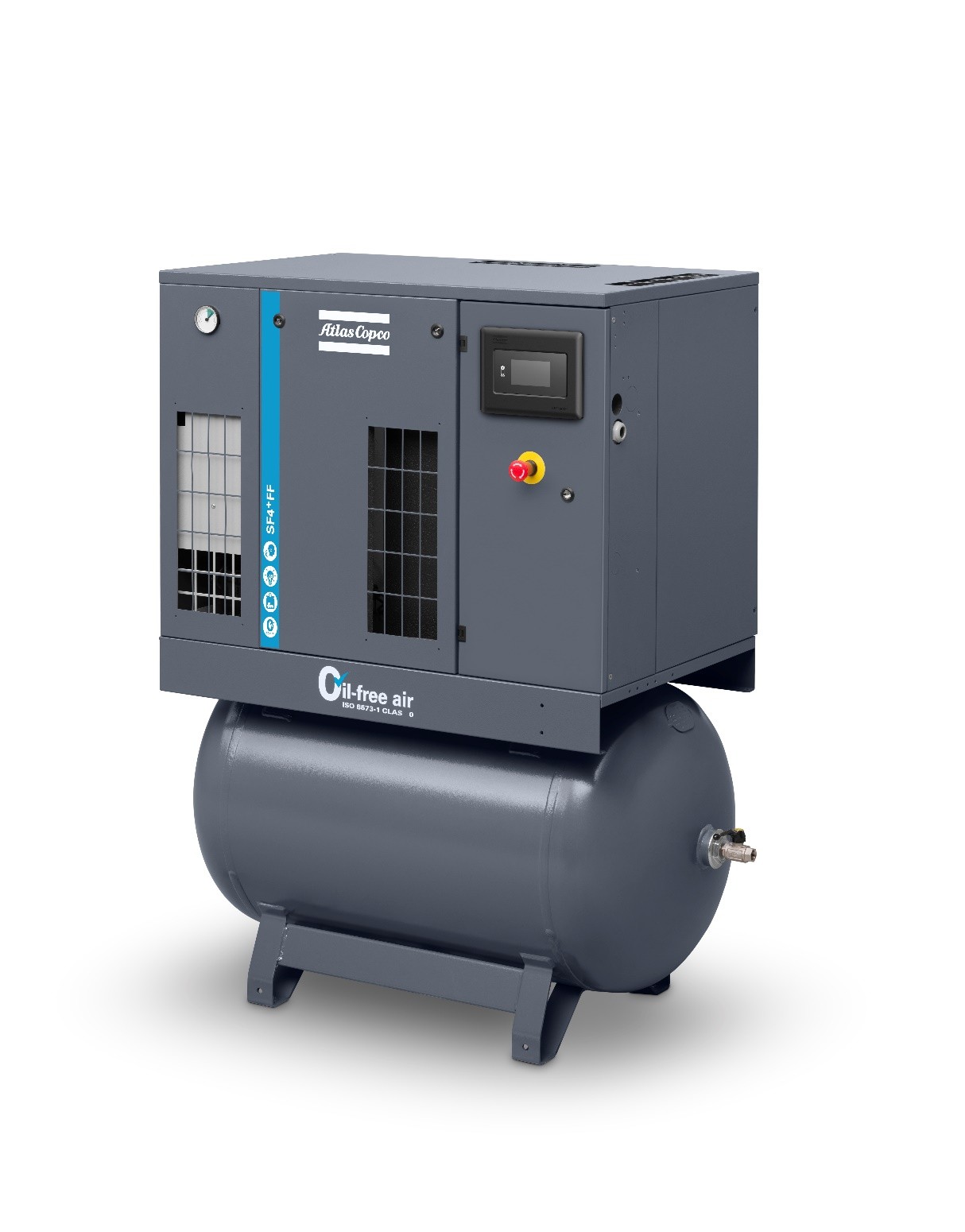

Three receiver mounting options are available: with an extended canopy that includes three integrated 10-liter galvanized air receivers or mounted on an internally coated 270-liter (72-gallon) or 500-liter (132-gallon) horizontal receiver.
- The new compact vertical setup enables easy access for maintenance, improves cooling to allow for lower working temperatures, and provides vibration damping.
- Extremely quiet: sound levels of 53 dB(A).
- Automatic stop when the required working pressure is reached to avoid unnecessary energy costs.
- Air-cooled scroll compressor element offers proven durability and reliability in operation, in addition to solid efficiency.
- Totally enclosed air-cooled IP55 Class F motors comply with IE3 Premium Efficiency standards.
- Compact and optimized integrated refrigerant dryer ensures air quality and prevents rust and corrosion in your compressed air network.
- An oversized cooler improves the performance of the unit.
- The use of stainless steel pipes and the vertically oversized check valve improve reliability and assure the quality of your compressed air.
Features of SF⁺ 8–22: Modular & flexible
- SF⁺ 8–22 multi-scroll units bring the benefits and flexibility of a modular system, utilizing two to four compressor modules integrated into one canopy.
- The Elektronikon controller continuously monitors the status of each element and starts and stops the compression elements, ensuring that the output matches the air demand.
- Modular with 2 to 4 compressor modules.
- Extremely quiet: sound levels of 63–65 dB(A).
- Air-cooled scroll compressor element offers proven durability and reliability in operation, in addition to solid efficiency.
- Compact and optimized integrated refrigerant dryer ensures air quality and prevents rust and corrosion in your compressed air network.
- While running the VFT algorithm, the Elektronikon Graphic controller matches the required air demand, eliminating unload power consumption.
- The air cooler is finetuned for improved performance, while the aluminum and stainless steel pipes improve reliability and assure the quality of compressed air.
CATALOGUE – DATA SHEET

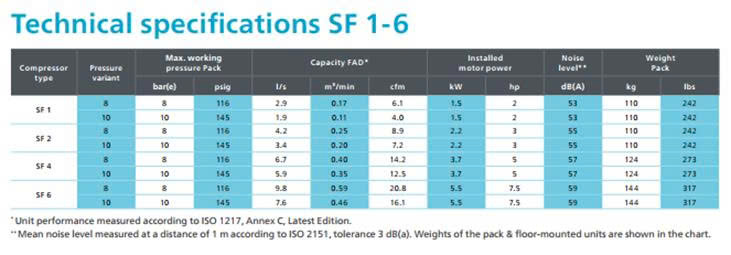

- SF 1-6

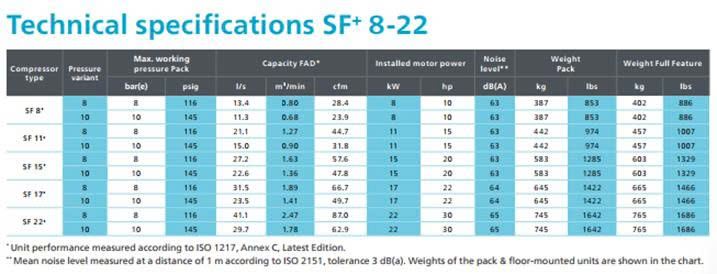

- SF⁺ 8–22
